K Standard Sprockets A Type

K Standard Sprockets A Type K25A
China sprocket manufacturer, we specialize in: chain sprocket, taper lock sprockets, casting sprockets, chains wheels and so on. Any needs for European Series Sprockets, American Series Sprockets or Japan Series Sprockets please send email to us. Custom orders are also welcome.

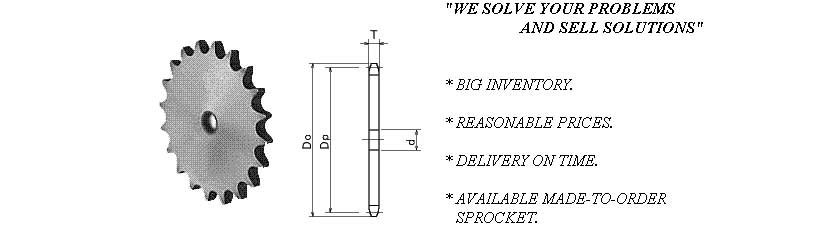

K Standard Sprockets A Type K25A
Chain Pitch (P) 6.35 mm (1/4 inch)
Inner Width (W) 3.18 mm
Bush Dia. (Dr) 3.30 mm
Tooth Width (T) 2.8 mm
(Dimension : mm)
Sprocket No. Outside Dia.
Do		 Pitch Dia.
Dp		 Bore Dia. d
Weight
(kg)		 Material Teeth
Type Teeth Stock Bore min.
K25A 10 23 20.55 9 11 0.02 Mild Steel 10
12 28 24.53 9 11 0.03 12
13 30 26.53 9 11 0.04 13
14 32 28.54 9 11 0.04 14
15 34 30.54 9 11 0.05 15
16 36 32.55 9 11 0.05 16
17 38 34.56 9 11 0.07 17
18 40 36.57 9 11 0.07 18
20 44 40.59 9 11 0.09 20
24 52 48.65 9 11 0.14 24
25 54 50.66 9 11 0.16 25
27 58 54.70 9 11 0.17 27
28 60 56.71 9 11 0.18 28
29 62 58.73 9 11 0.20 29
30 64 60.75 10 12 0.23 30
32 68 64.78 10 12 0.27 32
33 70 66.80 10 12 0.28 33
35 74 70.84 10 12 0.30 35
36 76 72.86 10 12 0.32 36
37 78 74.88 10 12 0.37 37
38 80 76.90 10 12 0.41 38
40 84 80.93 11 13 0.43 40
42 89 84.97 11 13 0.47 42
45 95 91.03 11 13 0.50 45
50 105 101.13 11 13 0.59 50
55 115 111.23 11 13 0.70 55
60 125 121.33 11 13 0.87 60
70 145 141.54 11 13 1.81 70
75 155 151.64 12 14 1.37 75
80 165 161.74 12 14 1.62 80
