Characteristics:
• Braking and holding
when power-off;
• Quick
response and high
reliability; • No
trial operation; • Asbestos-free
Brake Friction Disc;
• Quiet
operation and long life;
Most
suitable for use with small motors; |
` |
Size Code
|
Torque(
Kgf.m )
|
Excitation Voltage
( DC-V
)
|
Braking Work
( W ) 20 ℃
|
Weight
( Kg ) |
I
nsulation Grade
|
REB-A-01-02
|
0.013 |
24 |
45 |
8.0 |
5 |
0.19 |
F |
REB-A-01-03
|
0.026 |
24 |
45 |
8.0 |
6 |
0.26 |
REB-A-01-04
|
0.052 |
24 |
45 |
10.6 |
7 |
0.42 |
REB-A-01-05
|
0.110 |
24 |
45 |
12.0 |
9 |
0.56 |
|

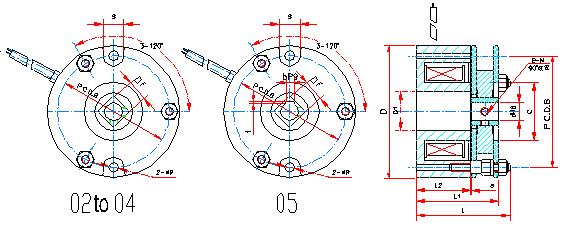

Dimensions for Installation (mm)
|
Size
Code |
D
|
B
|
C
|
D1
|
F
|
L1
|
R
|
a
|
d
|
L2
|
L
|
M
|
b
|
t
|
REB-A-01-02
|
37 |
32 |
18 |
9.0 |
10 |
30.8 |
3.5 |
0.10 |
6.5 |
21.5 |
33.5 |
M3 |
- |
- |
REB-A-01-03
|
47 |
40 |
21 |
13.5 |
10 |
29.8 |
3.5 |
0.15 |
6.0 |
19.5 |
34.0 |
M3 |
- |
- |
REB-A-01-04
|
56 |
48 |
24 |
19.0 |
14 |
31.5 |
3.5 |
0.15 |
8.0 |
20.0 |
37.0 |
M3 |
- |
- |
REB-A-01-05
|
66 |
58 |
35 |
24.0 |
18 |
33.5 |
4.5 |
0.15 |
10.0 |
21.0 |
38.5 |
M4 |
3 |
1.2
| |
