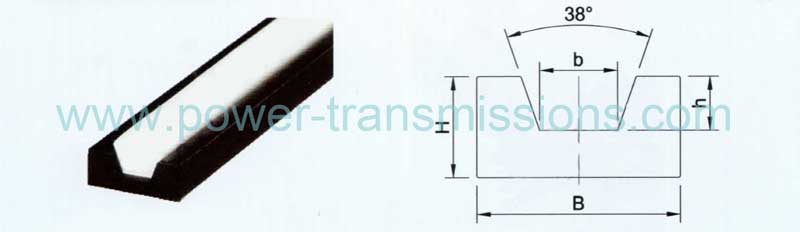

KR guides for V-belts
Type Belt type/b×h B H
KR8 8 × 5 20 10
KR10 10 × 6 20 10
KR13 13 × 8 20 12
KR17 17 × 11 30 15
KR20 20 × 12,5 30 20
KR22 22 × 14 35 20
KR25 25 × 16 40 25
KR32 32 × 20 50 30
KR40 40 × 25 60 35
