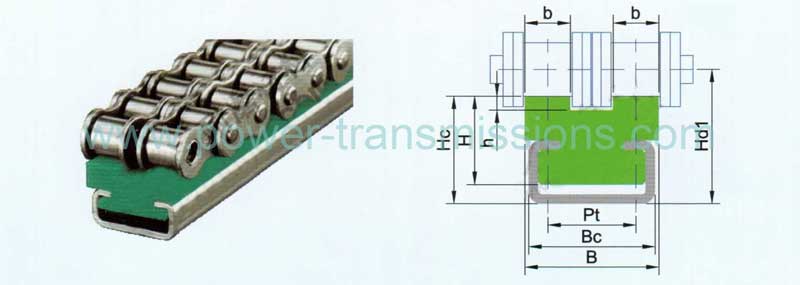

CT2 guides with metallic profile for double roller chains
Type Chain Ref. ISO EN or ASTM C profile Bc Hc B H Hd1
CT2-06B2 06B-2 3/8" x 7/32" C3 20 17 15.6 14 20.2
CT2-08B2 08B-2 1/2" x 5/16" C3 20 17 21.1 14 21.3
CT2-10B2 10B-2 5/8" x 3/8" C3 20 17 25.6 14 22.1
CT2-12B2 12B-2 3/4" x 7/16" C5 28 20 30.3 15 26.0
CT2-16B2 16B-2 1" x 17 mm C9 38 27 47.7 20 34.9
CT2-20B2 20B-2 1 1/4" x 3/4" C12 60 30 54.6 22 39.5
CT2-24B2 24B-2 1 1/2" x 1" C12 60 35 72.0 25 47.7
CT2-06C2 06C-2 35 C3 20 17 14.6 14 19.5
CT2-08A2 08A-2 40,208A,2040 C3 20 17 21.7 14 21.0
CT2-10A2 10A-2 50,210A,2050 C3 20 17 26.9 14 22.1
CT2-12A2 12A-2 60,212A,2060 C5 28 20 34.5 15 26.0
CT2-16A2 16A-2 80,216A,2080 C9 38 27 43.9 20 34.9
CT2-20A2 20A-2 100,220A,2100 C12 60 35 53.3 25 44.5
CT2-24A2 24A-2 120,224A,2120 C12 60 35 68.9 25 46.1
